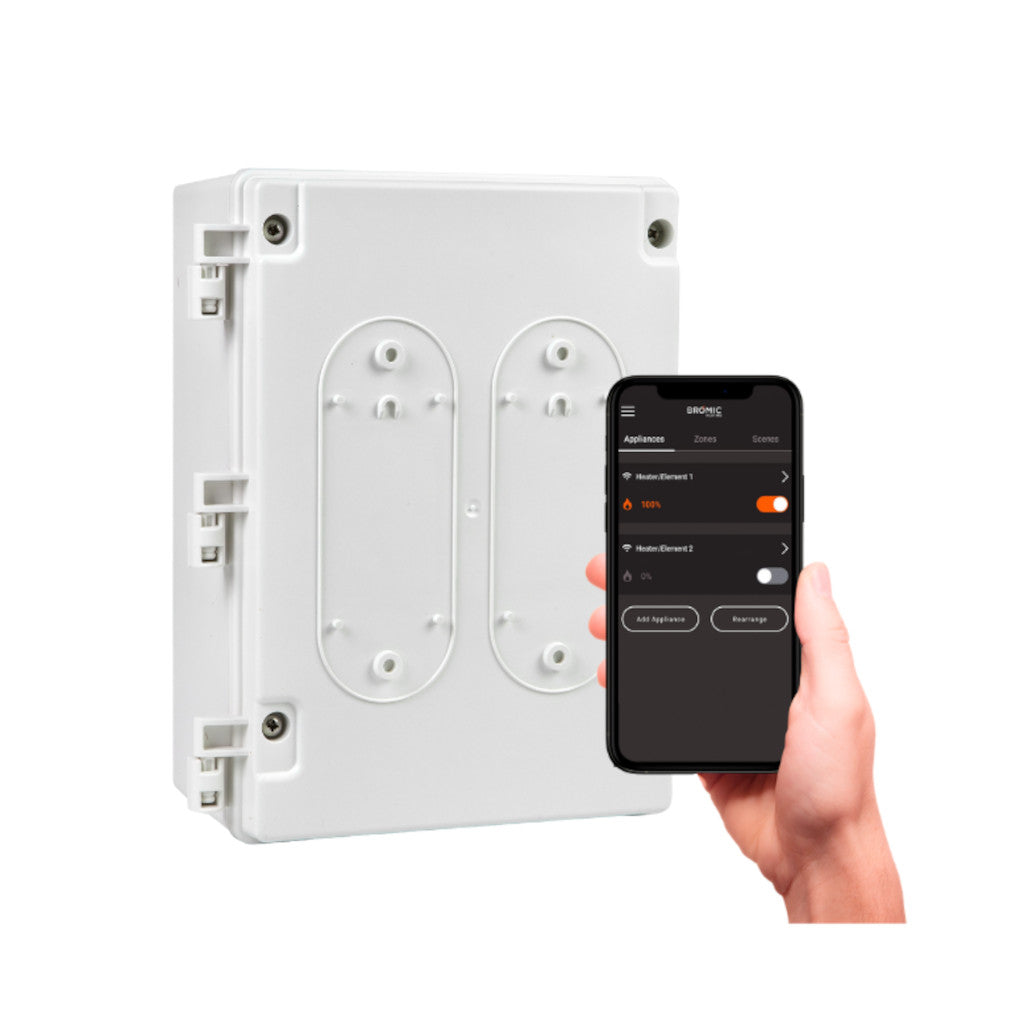

Bromic Affinity Smart-Heat Control ON/OFF 2CH 12KW (6KW/CH) | BH3130052
Dealer
Warranty InformationDESCRIPTION & FEATURES

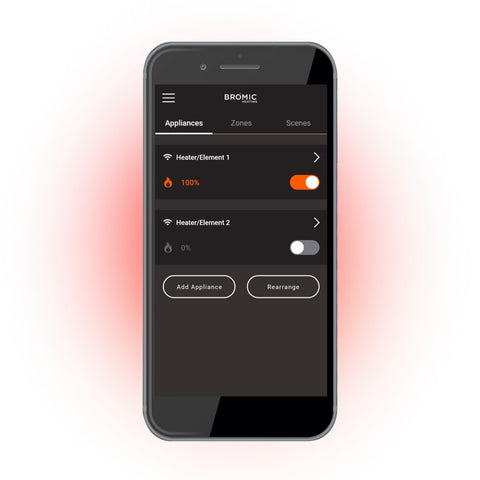

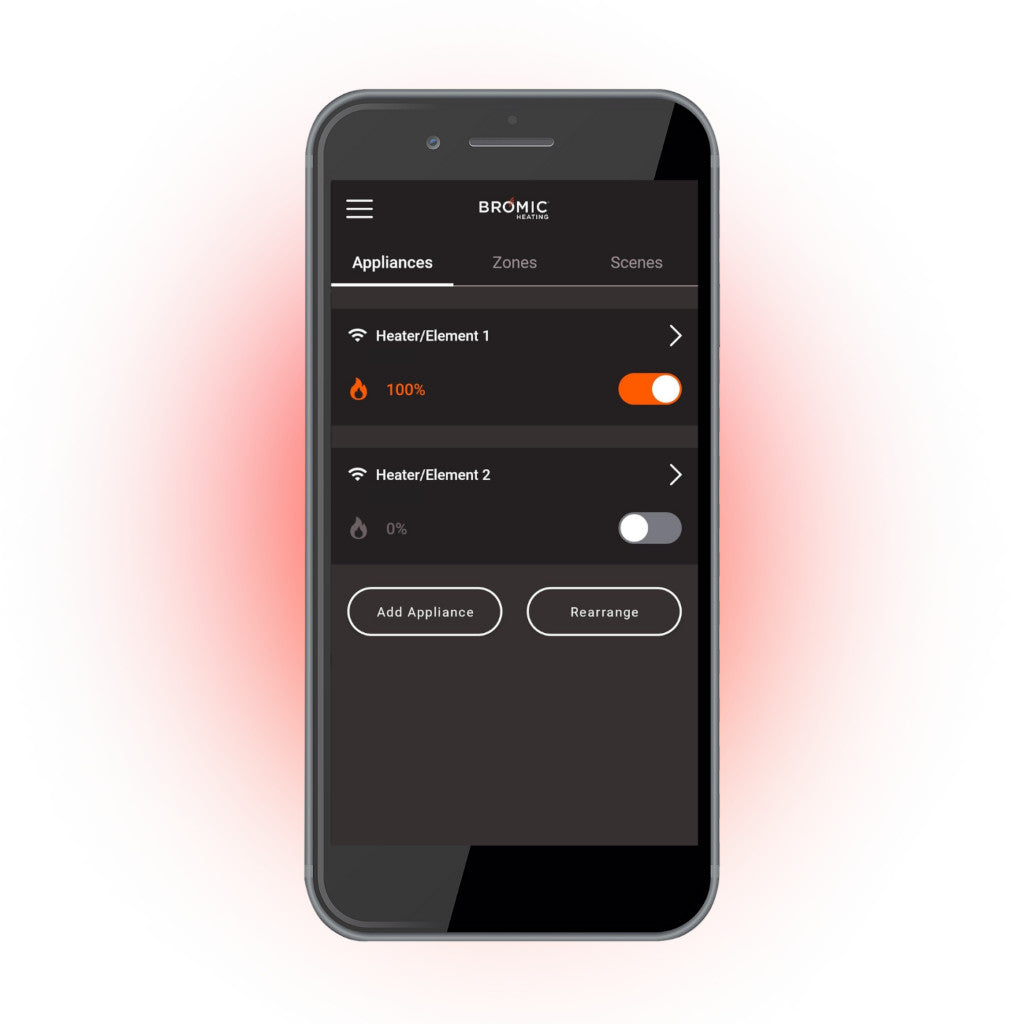

The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.
- WiFi, Bluetooth or Ethernet connectivity
- Complete control of heat output with On/Off and Dimming functionality
- Multi-heater management of unlimited connected controllers
- Create heater grouping within zones
- Timer & schedule settings
- Voice control integration with Amazon Alexa & Google Home
- Manage multiple sites from one app
- Admin control with multi-user management
- Connect with home automation or building management systems
Bromic Affinity Smart-Heat Control Channel Available In Three:
FEATURES
- Various Models Available: This series includes options for 1, 2, and 5 channel inputs with each channel input controlling up to 6000W of power or 10 gas heaters
- Wifi & Bluetooth Connectivity: Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating app
- Straight-Forward Function: Option for full-on or full-off power
- Advanced Features: Set timers and schedules, create heating zones and manage multiple sites
- Admin-Friendly: Multi-user management with customizable admin controls
Best Design Styles
- Contemporary; Modern
Included
- Affinity Smart-Heat Control ON/OFF
- 1 Year Parts
| PRODUCT SPECS | |
|---|---|
| Brand | Bromic |
| Model Name/Series | AFFINITY ON/OFF |
| Finish/Color | White |
| Model | BH3130052 |
| Protection Rating | IP54 |
| Wifi Connectivity | 2.4GHZ |
| Weight | 3.6 lbs |
| Warranty | 1 Year Parts |
| Heater Compatibility | Platinum Electric & Tungsten Electric |
| Number Of Channels | 2 CH |
| Front Cover Fastener | 4 x Captive Phillips Screw 12G (Torque 1.8 Nm) |
| ELECTRICAL SPECS | |
|---|---|
| Volts | 110V-277V |
| Watts | 6000W |
| Supply | a.c. 50-60Hz |
| Operating Temperature Range | -4°F to +86°F |
| Non-Operating Temperature Range | -22°F to +158°F |
| Rated Impulse Voltage | 2500V |
| Operating Humidity Range | 0-85% |
| Ground Connection Type | Internal busbar with M4 screw,spring washer and nut |
| Current Terminal Type | Screw terminal |
| Certification |  |
PRODUCT DOWNLOADS
DIMENSIONS:
On/Off 2 Channel Dimensions: 11" W x 8.0" H x 4.4" D
Input & Output Cable Gland Size: 2 x M25 (Torque 8 Nm)
Clearances:
Please refer to specifications in right hand column, tab 1. Thanks.
