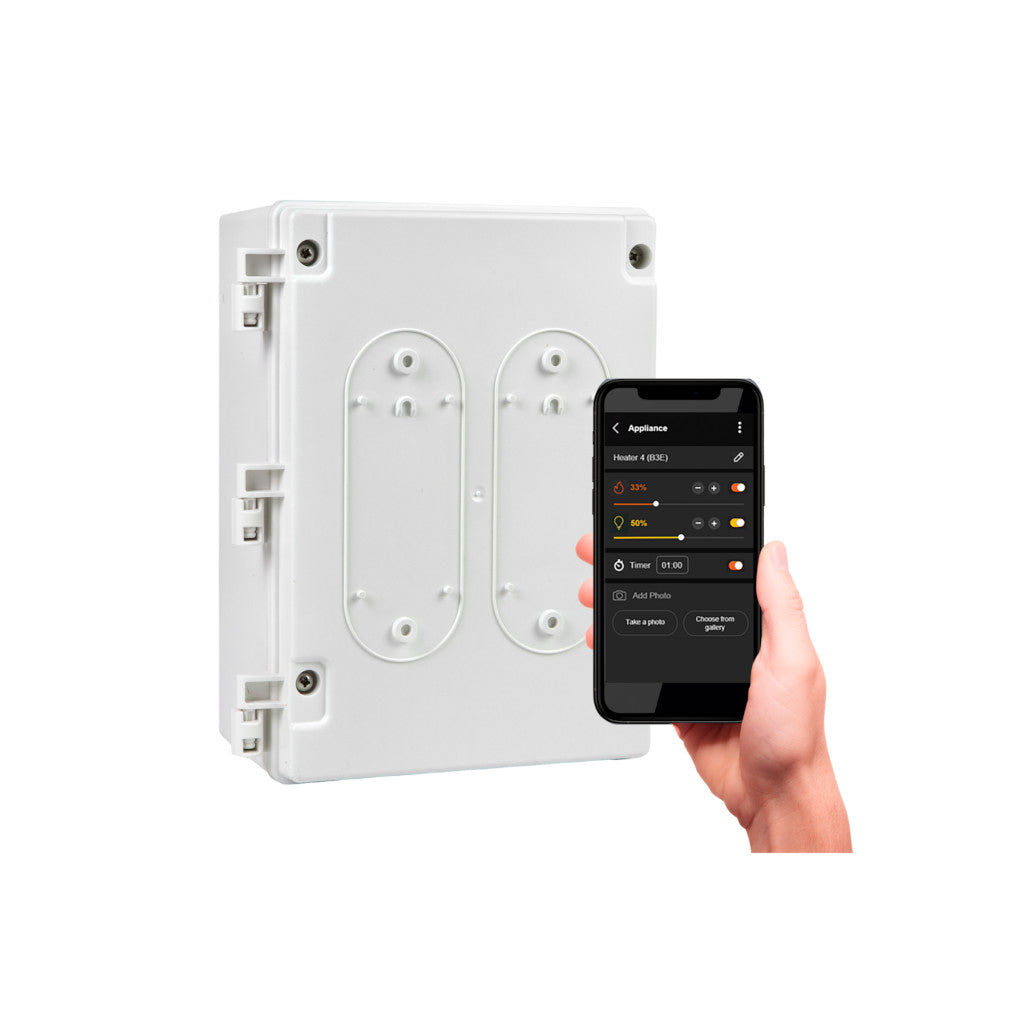

Bromic Affinity Smart-Heat Control Eclipse Pendant 1CH | BH8380051
Dealer
Warranty InformationDESCRIPTION & FEATURES
Created for our Eclipse Collection, the Affinity Eclipse Series offers 1 and 5 channel input options for our fixed Eclipse Pendant, with the 1 channel Eclipse Dimmer Series already included in our Eclipse Portable. Using the Bromic Heating app, have complete incremental control over not just the heat, but the LED light rail output as well, creating the perfect ambience – every time. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

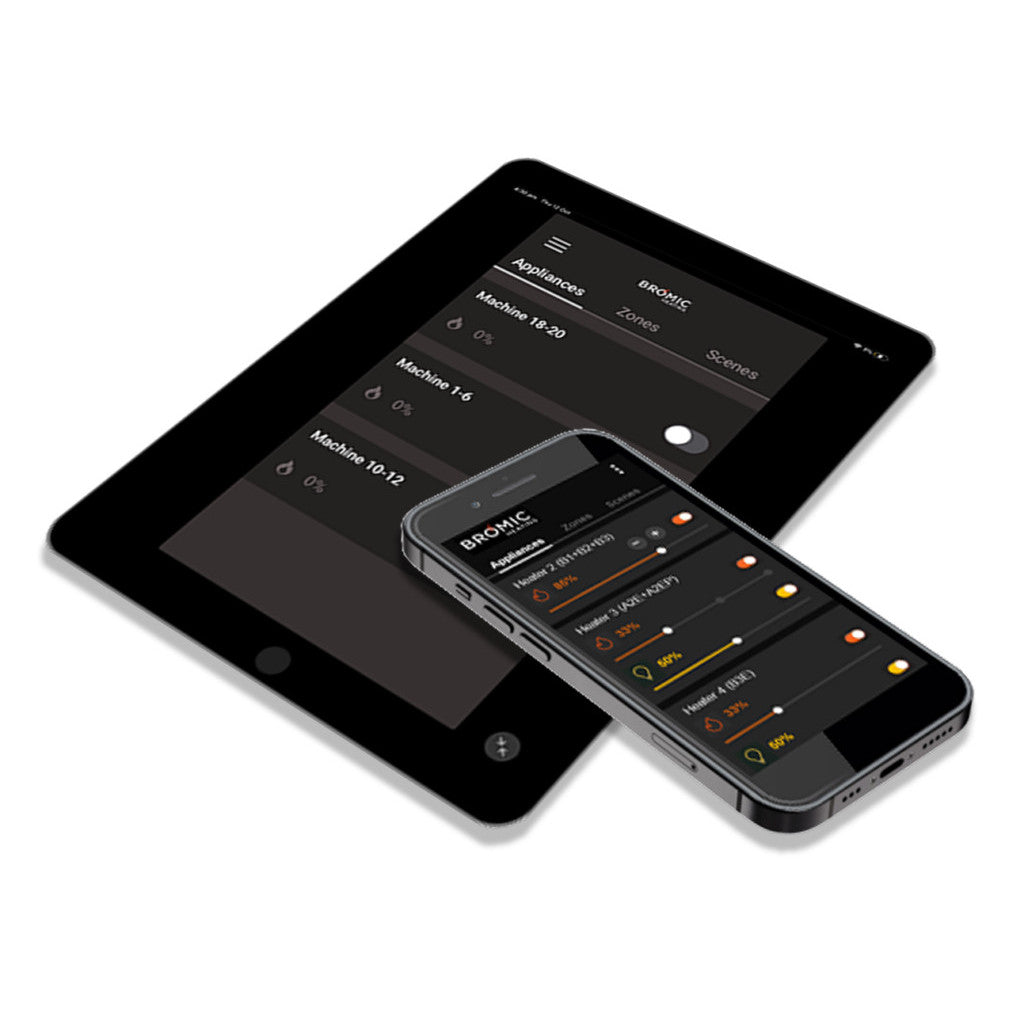

Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wifi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:- WiFi, Bluetooth or Ethernet connectivity
- Complete control of heat output with On/Off and Dimming functionality
- Multi-heater management of unlimited connected controllers
- Create heater grouping within zones
- Timer & schedule settings
- Voice control integration with Amazon Alexa & Google Home
- Manage multiple sites from one app
- Admin control with multi-user management
- Connect with home automation or building management systems
Bromic Bromic Affinity Smart-Heat Control Eclipse Pendant Available In Two:
FEATURES
- Various Models Available: 1 and 5 channel input options for our fixed Eclipse Pendant, with the 1 channel Eclipse Dimmer Series already included in our Eclipse Portable outdoor heater
- Wifi & Bluetooth Connectivity: Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating app
- Flexible Heat Control: Instantly and precisely adjust heat output down to 1% increments
- Advanced Features: Set timers and schedules, create heating zones and manage multiple sites
- Admin-Friendly: Multi-user management with customizable admin controls
Best Design Styles
- Contemporary; Modern
Included
- Affinity Smart-Heat Control Eclipse Pendant
- 1 Channel Control System
- 1 Year Parts
| PRODUCT SPECS | |
|---|---|
| Brand | Bromic |
| Model Name/Series | Smart-Heat Control Eclipse Pendant |
| Finish/Color | Gray |
| Model | BH8380051 |
| Protection Rating | IP54 |
| Wifi Connectivity | 2.4GHZ |
| Weight | 3.5 lbs |
| Warranty | 1 Year Parts |
| Heater Compatibility | Eclipse Electric |
| Number Of Channels | 1 CH |
| Front Cover Fastener | 4 x Captive Phillips Screw 12G (Torque 1.8 Nm) |
| Supply Phase | Single Phase |
| Current Terminal Type | Screw terminal |
| ELECTRICAL SPECS | |
|---|---|
| Volts | 220-240V |
| Watts | 4000W |
| Supply | a.c. 50-60Hz |
| Operating Temperature Range | -4°F to +86°F |
| Non-Operating Temperature Range | -22°F to +158°F |
| Rated Impulse Voltage | 2500V |
| Voltage | 220–240V 200-208V (Japan and North America Only |
| Operating Humidity Range | 0-85% |
| Ground Connection Type | Internal busbar with M4 screw, spring washer and nut |
| Certification |  |
PRODUCT DOWNLOADS
DIMENSIONS:
Eclipse Pendant 1 Channel Dimensions: 4.4" W x 11.4" H x 8.0" D
ICurrent Terminal Size (Max): 6mm2 / 10 AWG
Input Cable Gland Size: 1 x M25 (Torque 8 Nm)
Output Cable Gland Size: 1 x M25 (Torque 8 Nm)
Clearances:
Please refer to specifications in right hand column, tab 1. Thanks.
